What enrichment does to a comfort complaint live · June 2026
This is the actual output of TherMOOstat Wrangler on the live UC Davis Facilities Airtable base. Left is the complaint as the student submitted it; right is the same record after enrichment — the original feedback kept intact, plus the room's full mechanical-notes history, its equipment, the real outside-air temperature, a per-room trend chart, the building's design setpoints, and the actual building drawing. Every one of 29,387 complaints (2016–2026) now carries a record like these. Every image and quote on this page is pulled straight from the live base — nothing is mocked up.
What the team asked for — now automatic on every ticket
- Every prior mechanical note for that room (or, if the room has none, the rest of the floor).
- The room's temperature vs. set-point and the outside air temp now 98%
- The exact VAV / AHU / FCU serving it, plus the building's control system.
- A real per-room trend chart & the building's PI Web API trend data new
- The building's design setpoints (sequence-of-operations) new
- The actual floor plan / HVAC drawings from the UCD facilities archive new
1. Giedt Hall 1003 — "Hot" · the room's real trend chart
Before Feedback · what the student submitted
Building
Warren & Leta Giedt Hall
Room
1003
Comfort
Hot
Comment
It is very hot and stuffy in Giedt 1003.
Everything else
— blank
After enrichment the same record, enriched
Building / Room
Giedt Hall · 1003 CAAN 4835 Classroom · 186 Bioletti Way
Comfort · Comment
Hot "It is very hot and stuffy in Giedt 1003."
Conditions
Room 75.5 °F · heat SP 70 / cool SP 74 · outside 70 °F · just over cooling SP
Comfort band
whole-building band warmer 71–76 °F / cooler 69–74 °F (implemented 2018-09-17)
Equipment / control
AHU-1 · Siemens BAS
prior note: "programming was changed on AHU-1 that prevented the CHW valve from opening more than 15%" (2023-06-15, Randall)
prior note: "programming was changed on AHU-1 that prevented the CHW valve from opening more than 15%" (2023-06-15, Randall)

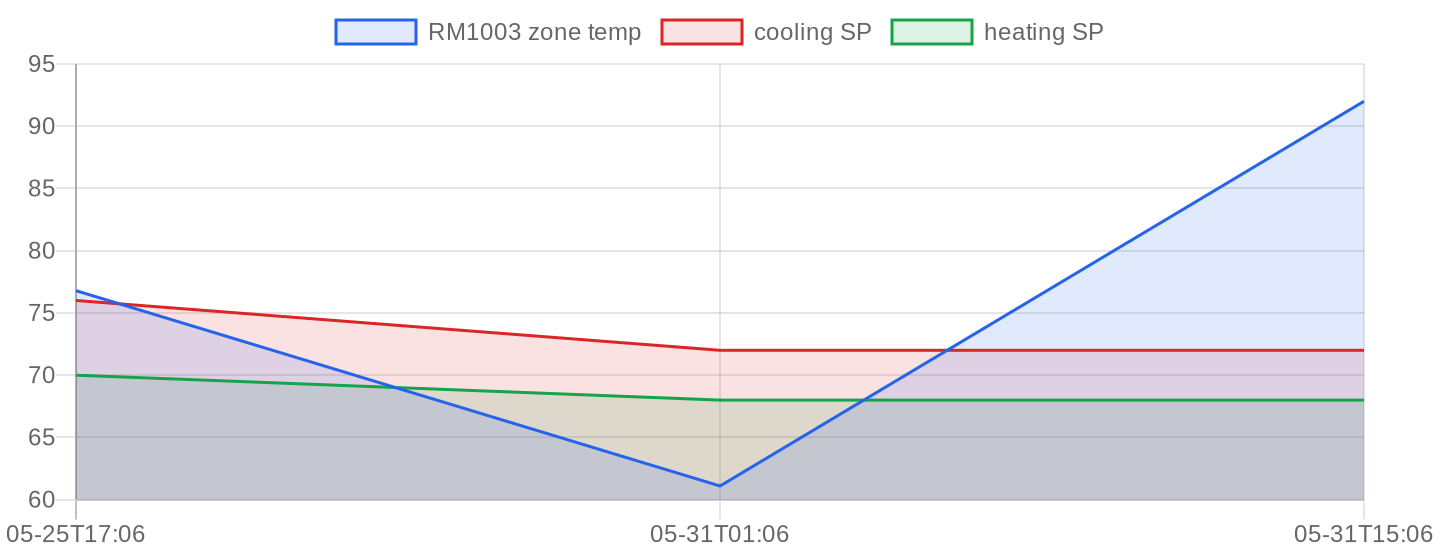

Trend Chart — this room (last 7 days)
Mechanical notes — this room (62 of 207 tickets)
2025-10-29 · Cold · Alex → Set Point / Programming Change:
"HHW pump seems to be off and not called for… AHU is meeting setpoint but rooms are not being reheated since no HHW is flowing into the building. The HHW system isn't enabled — Brian tried to enable it, but the Alerton Compass doesn't let him click anything now. He contacted Syserco and is waiting to hear back. We are getting TherMOOstat cold feedback."
2025-11-12 · Chilly · Gabriela: "That makes 3 cold complaints in 2 weeks… Brian still can't change anything on Alerton."
"HHW pump seems to be off and not called for… AHU is meeting setpoint but rooms are not being reheated since no HHW is flowing into the building. The HHW system isn't enabled — Brian tried to enable it, but the Alerton Compass doesn't let him click anything now. He contacted Syserco and is waiting to hear back. We are getting TherMOOstat cold feedback."
2025-11-12 · Chilly · Gabriela: "That makes 3 cold complaints in 2 weeks… Brian still can't change anything on Alerton."
What changed: the room now carries its own trend chart showing the zone riding well above the cooling setpoint, the real outside-air temp, and a note history that pins Giedt's recurring HHW / Alerton control problem — the reviewer sees the building-wide fault, not a one-off "hot" vote.
2. Mathematical Sciences 2125 — "Stuffy" · PI trend + an open fault
Before Feedback · what the student submitted
Building
Mathematical Sciences Building
Room
2125
Comfort
Hot
Comment
Room is stuffy and fairly uncomfortable to work in.
After enrichment the same record, enriched
Building / Room
Mathematical Sciences · 2125 CAAN 4821 Office · 399 Crocker Lane
Comfort · Comment
Hot "Room is stuffy and fairly uncomfortable to work in."
Conditions
heat SP 70 / cool SP 74 · outside 75.8 °F · runs over cool SP most days
Equipment / control
AHU-3 · Siemens BAS (Desigo) · STPT-DIAL control

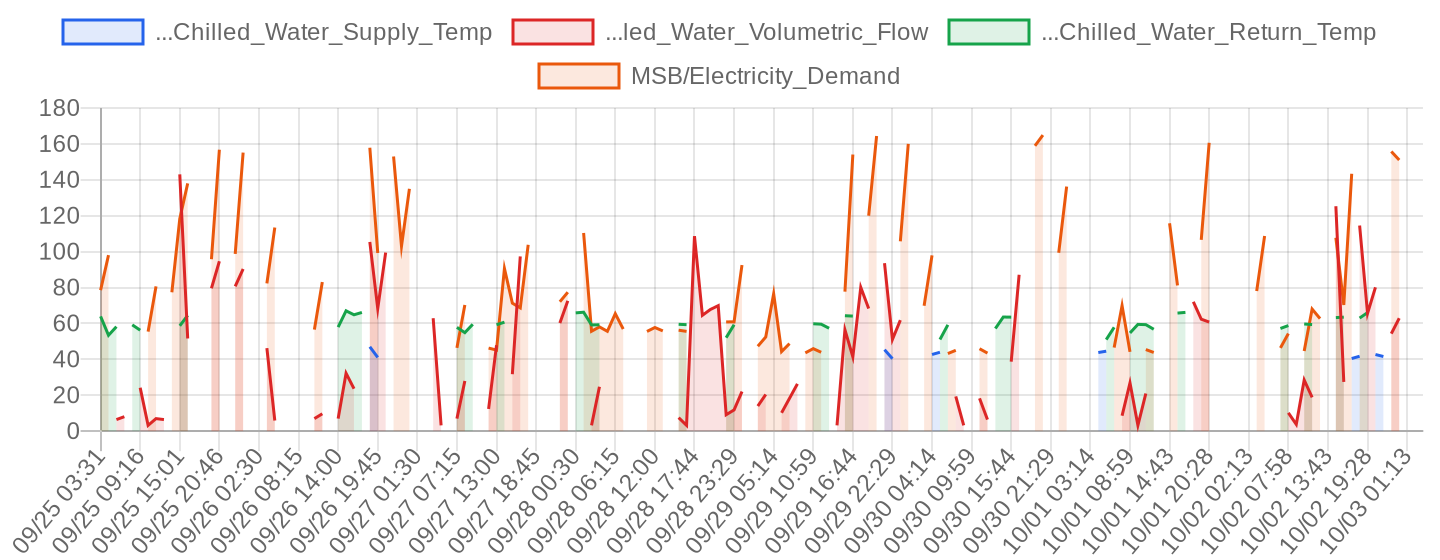

PI Trend Data — 7-day (PI Web API)
Mechanical notes — this room (13 of 14 tickets)
2025-10-02 · Hot · Benjamin: "AHU-3 supply temperature is meeting its setpoint… HHW valve not actuating. Tririga task sent to controls: 2873872. The room had the maximum airflow, the reheat valve was off and the SAT was about 60 — it was doing everything it could to cool the zone down. Math Science having COM issues."
2022-05-23 · Hot · Benjamin: "Currently 84 °F inside — room had not been occupied since 10am."
2022-05-23 · Hot · Benjamin: "Currently 84 °F inside — room had not been occupied since 10am."
HVAC docs for this building
What changed: this one's not just preference — the room runs over set-point and the notes pin it to a heating-hot-water valve that isn't actuating (work order Tririga 2873872 already open), with the live PI trend and the equipment schedule one click away. The reviewer sees the open fault, not a blank box.
3. Roy Bainer Hall 1065 — "Chilly" · design setpoints + the real drawing
Before Feedback · what the student submitted
Building
Roy Bainer Hall
Room
1065
Comfort
Chilly
Everything else
— blank
After enrichment the same record, enriched
Building / Room
Roy Bainer Hall · 1065 CAAN 4004 Lab · 222 Physical Sciences Mall
Comfort
Chilly
Conditions
heat SP 72 / cool SP 75 · outside 69 °F · within deadband
Equipment
VAV 125 → AHU A/C-1 (matched from the floor's HVAC drawing) · Siemens
Design setpoints (sequence of operations)
VAV terminal unit with reheat — what the controls were designed to do:
Occupiedheat 70 °F / cool 75 °F · deadband 2 °F
Unoccupiednight heat 60 °F / cool 85 °F · min flow
Demand resp.cooling +4 °F / heating −4 °F
⚠ alarms: zone low 58 °F / high 87 °F · supply >115 or <50 (600s delay)

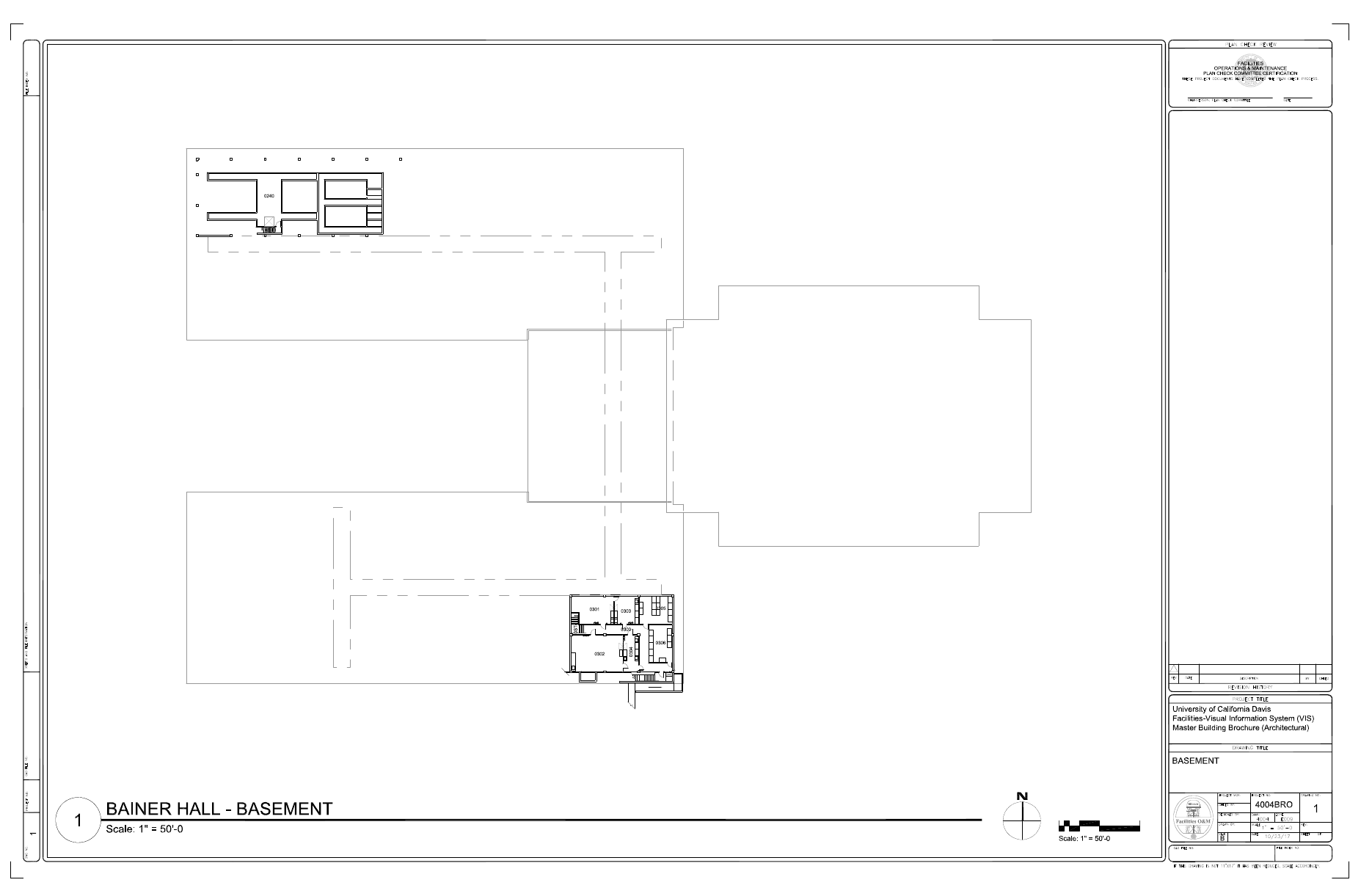

Floor plan (1 of 15 HVAC docs)
Mechanical notes — this room (22 of 30 tickets)
2025-11-21 · Cold · Kihun → site visit:
"Served by AC-4… Hiroko and I visited the mechanical room. The room temp on the graphics is indeed RM1065. Visiting RM1065 we noticed the occupants tried covering one of the supply vents with packing tape. Our theory is the cubicles cause uneven airflow to desks."
2025-12-08 · Hot · Hayley: "Collin and Hiroko found that cubicles get heated unevenly due to vent positioning."
"Served by AC-4… Hiroko and I visited the mechanical room. The room temp on the graphics is indeed RM1065. Visiting RM1065 we noticed the occupants tried covering one of the supply vents with packing tape. Our theory is the cubicles cause uneven airflow to desks."
2025-12-08 · Hot · Hayley: "Collin and Hiroko found that cubicles get heated unevenly due to vent positioning."
What changed: the building's design control narrative is right there to measure against — occupied 70/75 with 58/87 °F alarms — alongside the real floor plan and a documented cubicle-airflow site visit. The reviewer can tell "in spec, personal preference" from "actual fault" in seconds.
4. Olson Hall 147 — "Chilly" · exact unit + the real floor plan
Before Feedback · what the student submitted
Building
Olson Hall
Room
147
Comfort
Chilly
Everything else
— blank
After enrichment the same record, enriched
Building / Room
Gus Olson Hall · 147 CAAN 3803 Classroom · 171 Hutchison Drive
Comfort
Chilly
Conditions
heat SP 70 / cool SP 74 · outside 70 °F · within deadband
Equipment
FCU-1-47 → AHU-1 (matched via the librarian's inventory drawing, 2026-05-30) · Siemens BAS
Mechanical note — this room
2017-04-03 · Hot · Emerald: "Issue with CHW to AHU. Corrected evening of 4/3." — the chilled-water-to-AHU theme recurs across Olson's 1,357 building tickets (Hot 661).

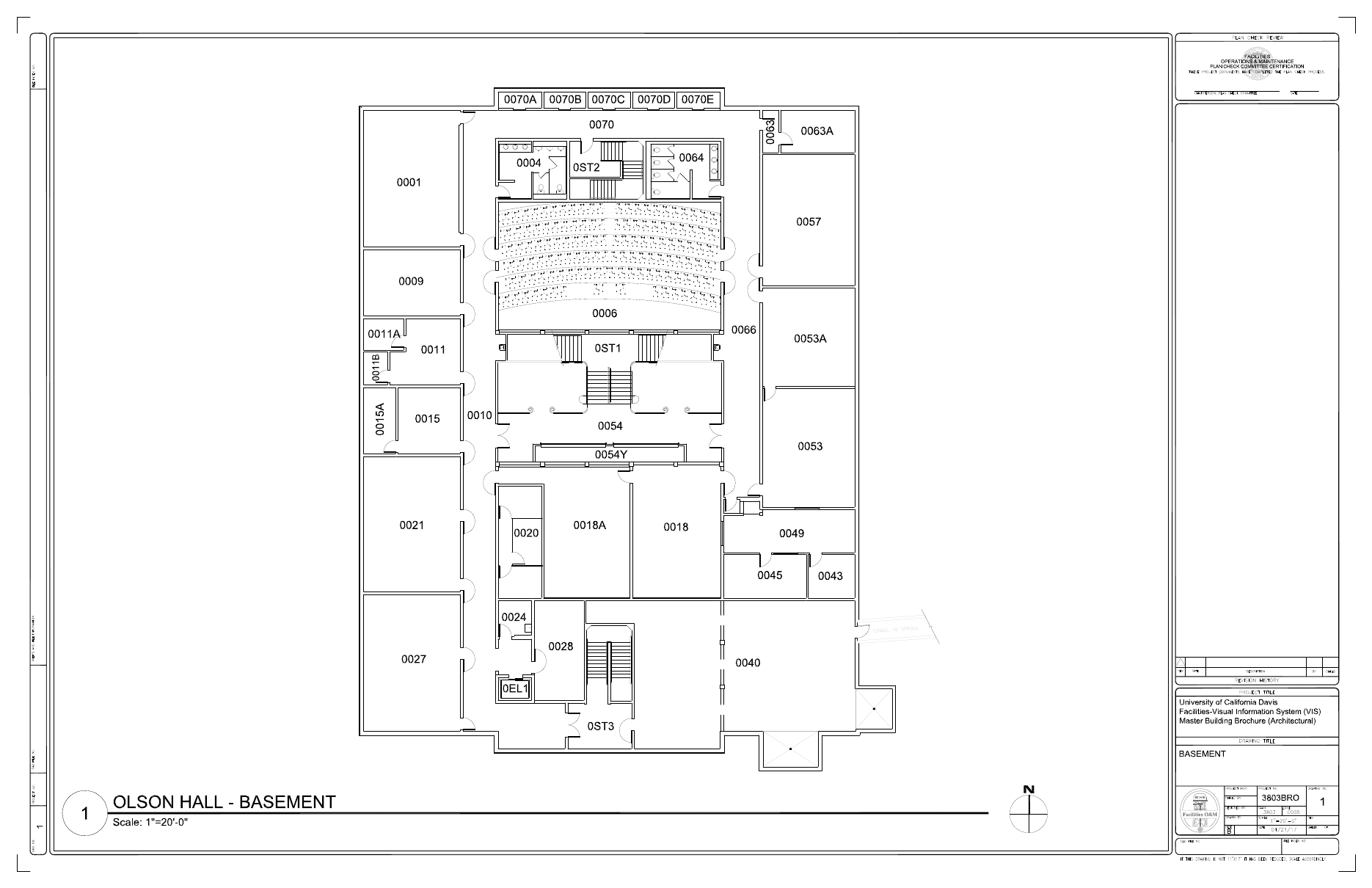

Floor plan — this building
What changed: resolves to FCU-1-47 → AHU-1 via the librarian's drawing match, in band, with the room's CHW-to-AHU note and the real floor plan pointing the tech at the loop and the layout.
Across all 29,387 complaints
| Coverage on the live base | Now |
|---|---|
| Original feedback kept, enriched with the room's full note history | 100% |
| Outside-air temp resolved (PI campus reference sensors) ▲ was ~8% | 98.0% |
| PI trend data attached (snapshot + 7-day + chart) | 100% |
| Room temp shown against heating & cooling set-points | ~50% |
| Real per-room comfort trend chart (zone temp vs SP) new | 655 rooms |
| Resolved to a specific VAV / AHU / FCU ▲ was ~34% | 52.0% |
| Building control system identified | 85.2% |
| Building floor plan / HVAC drawing attached new | 90.0% |
| Design setpoints (sequence-of-operations) narrative new | 14.9% |
| Canonical CAAN + building link | every building |
| Time to enrich one record | ~30 sec, no manual lookup |
No guessing. The set-point (~50%), comfort-chart (655 rooms), and design-setpoint (14.9%) numbers are the records where we have real, matchable data — a sensor that maps to the room, a drawing for that floor, a parsed control narrative for that building. Where we don't, the cell is left blank rather than filled with a guess. The gaps are honest, and they shrink every time a new drawing or sensor mapping lands.
Today a reviewer opens a complaint with a building, a room, and a comfort vote. After TherMOOstat Wrangler, they open the same record — original feedback intact — now carrying the room's actual temperature vs. set-point and outside air, the exact VAV → AHU, a real trend chart, the building's design setpoints, and every prior tech note for that room.
